GeoArrays

Simple geographical raster interaction built on top of ArchGDAL, GDAL and CoordinateTransformations.

A GeoArray is an AbstractArray, an AffineMap for calculating coordinates based on the axes and a CRS definition to interpret these coordinates into in the real world. It's three dimensional and can be seen as a stack (3D) of 2D geospatial rasters (bands), the dimensions are :x, :y, and :bands. The AffineMap and CRS (coordinates) only operate on the :x and :y dimensions.

This packages takes its inspiration from Python's rasterio.

Installation

(v1.8) pkg> add GeoArrays

Examples

Basic Usage

Load the GeoArrays package.

julia> using GeoArrays

Read a GeoTIFF file and display its information, i.e. AffineMap and projection (CRS).

# Read TIF file
julia> fn = download("https://github.com/yeesian/ArchGDALDatasets/blob/master/data/utmsmall.tif?raw=true")
julia> geoarray = GeoArrays.read(fn)
100x100x1 Array{UInt8,3} with AffineMap([60.0 0.0; 0.0 -60.0], [440720.0, 3.75132e6]) and CRS PROJCS["NAD27 / UTM zone 11N"...

# Affinemap containing offset and scaling
julia> geoarray.f
AffineMap([60.0 0.0; 0.0 -60.0], [440720.0, 3.75132e6])

# WKT projection string
julia> geoarray.crs
GeoFormatTypes.WellKnownText{GeoFormatTypes.CRS}(GeoFormatTypes.CRS(), "PROJCS[\"NAD27 / UTM zone 11N\",GEOGCS[\"NAD27\",DATUM[\"North_American_Datum_1927\",SPHEROID[\"Clarke 1866\",6378206.4,294.978698213898,AUTHORITY[\"EPSG\",\"7008\"]],AUTHORITY[\"EPSG\",\"6267\"]],PRIMEM[\"Greenwich\",0],UNIT[\"degree\",0.0174532925199433,AUTHORITY[\"EPSG\",\"9122\"]],AUTHORITY[\"EPSG\",\"4267\"]],PROJECTION[\"Transverse_Mercator\"],PARAMETER[\"latitude_of_origin\",0],PARAMETER[\"central_meridian\",-117],PARAMETER[\"scale_factor\",0.9996],PARAMETER[\"false_easting\",500000],PARAMETER[\"false_northing\",0],UNIT[\"metre\",1,AUTHORITY[\"EPSG\",\"9001\"]],AXIS[\"Easting\",EAST],AXIS[\"Northing\",NORTH],AUTHORITY[\"EPSG\",\"26711\"]]")

Writing to GeoTIFF

Create a random GeoArray and write it to a GeoTIFF file.

# Create, reference and write a TIFF
julia> ga = GeoArray(rand(100,200))
julia> bbox!(ga, (min_x=2., min_y=51., max_x=5., max_y=54.))  # roughly the Netherlands
julia> epsg!(ga, 4326)  # in WGS84
julia> GeoArrays.write("test.tif", ga)
# Or write it with compression and tiling
julia> GeoArrays.write("test_compressed.tif", ga; options=Dict("TILED"=>"YES", "COMPRESS"=>"ZSTD"))

Streaming support

The package supports streaming reading.

# Read in 39774x60559x1 raster (AHN3), but without masking (missing) support
julia> @time ga = GeoArrays.read(fn, masked=false)
  0.001917 seconds (46 allocations: 2.938 KiB)
39774x60559x1 ArchGDAL.RasterDataset{Float32,ArchGDAL.IDataset} with AffineMap([1.0433425614165472e-6 0.0; 0.0 -1.0433425614165472e-6], [0.8932098305563291, 0.11903776654646055]) and CRS PROJCS["Amersfoort / RD New",GEOGCS["Amersfoort",DATUM["Amersfoort",SPHEROID["Bessel 1841",6377397.155,299.1528128,AUTHORITY["EPSG","7004"]],AUTHORITY["EPSG","6289"]],PRIMEM["Greenwich",0,AUTHORITY["EPSG","8901"]],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]],AUTHORITY["EPSG","4289"]],PROJECTION["Oblique_Stereographic"],PARAMETER["latitude_of_origin",52.1561605555556],PARAMETER["central_meridian",5.38763888888889],PARAMETER["scale_factor",0.9999079],PARAMETER["false_easting",155000],PARAMETER["false_northing",463000],UNIT["metre",1,AUTHORITY["EPSG","9001"]],AXIS["Easting",EAST],AXIS["Northing",NORTH],AUTHORITY["EPSG","28992"]]

Reading bands

GeoTIFFs can be large, with several bands, one can read.

When working with large rasters, e.g. with satellite images that can be GB in size, it is useful to be able to read only one band (or a selection of them) to GeoArray. When using read, one can specify the band.

# Get file
julia> fn = download("https://github.com/yeesian/ArchGDALDatasets/blob/master/pyrasterio/RGB.byte.tif?raw=true")

# Read band 2
julia> ga_band = GeoArrays.read(fn, masked=false, band=2)
791x718x1 Array{UInt8, 3} with AffineMap([300.0379266750948 0.0; 0.0 -300.041782729805], [101985.0, 2.826915e6]) and CRS PROJCS["UTM Zone 18, Northern Hemisphere",GEOGCS["Unknown datum based upon the WGS 84 ellipsoid",DATUM["Not_specified_based_on_WGS_84_spheroid",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]]],PROJECTION["Transverse_Mercator"],PARAMETER["latitude_of_origin",0],PARAMETER["central_meridian",-75],PARAMETER["scale_factor",0.9996],PARAMETER["false_easting",500000],PARAMETER["false_northing",0],UNIT["metre",1,AUTHORITY["EPSG","9001"]],AXIS["Easting",EAST],AXIS["Northing",NORTH]]

In case there is missing data, the type will be a Union{Missing, T}. To convert to a GeoArray without missing, you can call coalesce(ga, value_to_replace_missing).

Using coordinates

GeoArrays have geographical coordinates for all array elements (pixels). They can be retrieved with the GeoArrays.coords function.

# Find coordinates by index
julia> GeoArrays.coords(geoarray, (1,1))
2-element StaticArrays.SArray{Tuple{2},Float64,1,2}:
 440720.0
      3.75132e6

All coordinates (tuples) are obtained as generator when omitting the index parameter.

# Find all coordinates
julia> collect(GeoArrays.coords(geoarray))
101×101 Matrix{StaticArraysCore.SVector{2, Float64}}:
 [440720.0, 3.75132e6]  [440720.0, 3.75126e6]  [440720.0, 3.7512e6] ...
 ...

Similarly, one can find the coordinates ranges of a GeoArray

julia> x, y = GeoArrays.ranges(geoarray)
(440750.0:60.0:446690.0, 3.75129e6:-60.0:3.74535e6)

The operation can be reversed, i.e. row and column index can be computed from coordinates with the indices function.

# Find index by coordinates
julia> indices(geoarray, [440720.0, 3.75132e6])
CartesianIndex(1, 1)

Manipulation

Basic GeoArray manipulation is implemented, e.g. translation.

# Translate complete raster by x + 100
julia> trans = Translation(100, 0)
julia> compose!(ga, trans)

When GeoArrays have the same dimensions, AffineMap and CRS, addition, subtraction, multiplication and division can be used.

# Math with GeoArrays (- + * /)
julia> GeoArray(rand(5,5,1)) - GeoArray(rand(5,5,1))
5x5x1 Array{Float64,3} with AffineMap([1.0 0.0; 0.0 1.0], [0.0, 0.0]) and undefined CRS

One can also warp an array, using GDAL behind the scenes. For example, we can vertically transform from the ellipsoid to the EGM2008 geoid using EPSG code 3855. Note that the underlying PROJ library needs to find the geoidgrids, so if they're not available locally, one needs to set ENV["PROJ_NETWORK"] = "ON" as early as possible, ideally before loading GeoArrays.

ga = GeoArray(zeros((360, 180)))
bbox!(ga, (min_x=-180, min_y=-90, max_x=180, max_y=90))
crs!(ga, GeoFormatTypes.EPSG(4979))  # WGS83 in 3D (reference to ellipsoid)
ga2 = GeoArrays.warp(ga, Dict("t_srs" => "EPSG:4326+3855"))

Nodata filling

GeoArrays with missing data can be filled with the fill! function.

julia> using GeoStats  # or any estimation solver from the GeoStats ecosystem
julia> ga = GeoArray(Array{Union{Missing, Float64}}(rand(5, 1)))
julia> ga.A[2,1] = missing
[:, :, 1] =
 0.6760718768442127
  missing
 0.852882193026649
 0.7137410453351622
 0.5949409082233854
julia> GeoArrays.fill!(ga, IDW(2), maxneighbors=10)
[:, :, 1] =
 0.6760718768442127
 0.7543298370153771
 0.852882193026649
 0.7137410453351622
 0.5949409082233854

Plotting

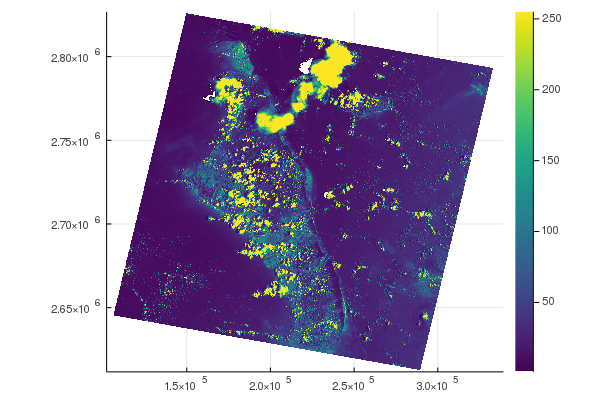

Individual bands from a GeoArray can be plotted with the plot function. By default the first band is used.

# Plot a GeoArray
julia> using Plots
julia> fn = download("https://github.com/yeesian/ArchGDALDatasets/blob/master/pyrasterio/RGB.byte.tif?raw=true")
julia> ga = GeoArrays.read(fn)
julia> plot(ga)

# or plot a band other than the first one
julia> plot(ga, band=2)

example plot

Note that for larger GeoArrays, only a sample of the data is plotted for performance. By default the sample size is twice figure size. You can control this factor by calling plot(ga, scalefactor=2), where higher scalefactor yields higher sizes, up to the original GeoArray size.

Subsetting arrays

GeoArrays can be subset by row, column and band using the array subsetting notation, e.g. ga[100:200, 200:300, 1:2].

# Get file
julia> fn = download("https://github.com/yeesian/ArchGDALDatasets/blob/master/pyrasterio/RGB.byte.tif?raw=true")

# Read the entire file
julia> ga = GeoArrays.read(fn);

julia> ga.f
AffineMap([300.0379266750948 0.0; 0.0 -300.041782729805], [101985.0, 2.826915e6])

julia> ga_sub = ga[200:500,200:400,begin:end]
301x201x3 Array{Union{Missing, UInt8}, 3} with AffineMap([300.0379266750948 0.0; 0.0 -300.041782729805], [161692.54740834387, 2.767206685236769e6]) and CRS PROJCS["UTM Zone 18, Northern Hemisphere",GEOGCS["Unknown datum based upon the WGS 84 ellipsoid",DATUM["Not_specified_based_on_WGS_84_spheroid",SPHEROID["WGS 84",6378137,298.257223563,AUTHORITY["EPSG","7030"]]],PRIMEM["Greenwich",0],UNIT["degree",0.0174532925199433,AUTHORITY["EPSG","9122"]]],PROJECTION["Transverse_Mercator"],PARAMETER["latitude_of_origin",0],PARAMETER["central_meridian",-75],PARAMETER["scale_factor",0.9996],PARAMETER["false_easting",500000],PARAMETER["false_northing",0],UNIT["metre",1,AUTHORITY["EPSG","9001"]],AXIS["Easting",EAST],AXIS["Northing",NORTH]]

julia> ga_sub.f
AffineMap([300.0379266750948 0.0; 0.0 -300.041782729805], [161692.54740834387, 2.767206685236769e6])

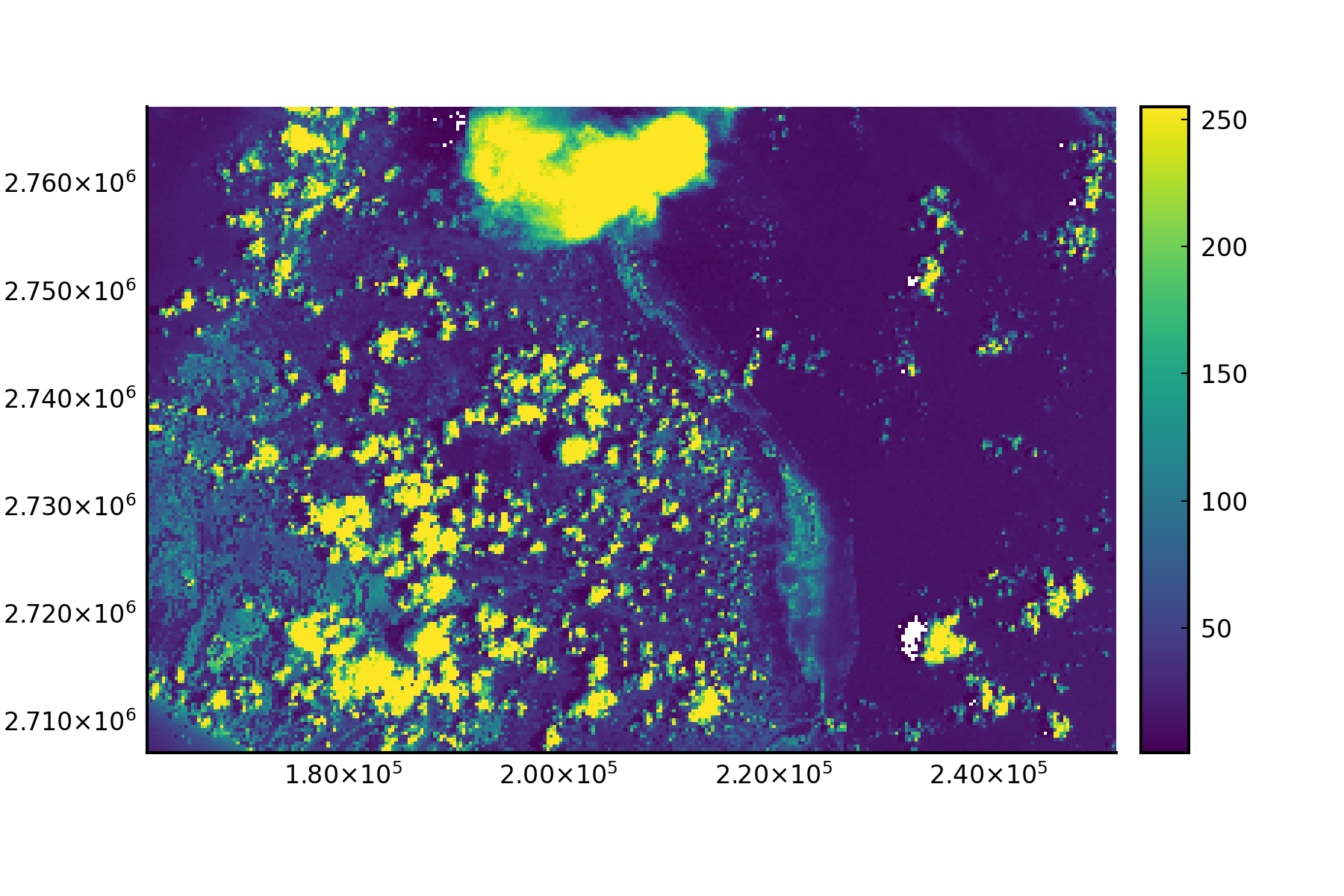

julia> plot(ga_sub)

example plot

Profile

You can sample the values along a line in a GeoArray with profile(ga, linestring). The linestring can be any geometry that supports GeoInterface.jl.

Alternatives

GeoArrays.jl was written to quickly save a geospatial Array to disk. Its functionality mimics rasterio in Python. If one requires more features–-such as rasterization or zonal stats–-which also work on NetCDF files, Rasters.jl is a good alternative. Its functionality is more like (rio)xarray in Python.

API

GeoArrays.Center — Type
Center()

Strategy to use in functions like indices and coords, in which it will use the center of the raster cells to do coordinate conversion.

source
GeoArrays.GeoArray — Type
GeoArray{T::NumberOrMissing,N,A<:AbstractArray{T,N}} <: AbstractArray{T,N}

A GeoArray is an AbstractArray, an AffineMap for calculating coordinates based on the axes and a CRS definition to interpret these coordinates into in the real world. It's three dimensional and can be seen as a stack (3D) of 2D geospatial rasters (bands), the dimensions are :x, :y, and :bands. The AffineMap and CRS (coordinates) only operate on the :x and :y dimensions.

source
GeoArrays.GeoArray — Method
GeoArray(A::AbstractArray{T,2|3} where T <: NumberOrMissing, f::AffineMap, crs::String)

Construct a GeoArray from any Array and an AffineMap that specifies the coordinates and crs string in WKT format.

source
GeoArrays.GeoArray — Method
GeoArray(A::AbstractArray{T,2|3} where T <: NumberOrMissing, x::AbstractRange, y::AbstractRange, args...)

Construct a GeoArray any Array and it's coordinates from AbstractRanges for each dimension.

source
GeoArrays.GeoArray — Method
GeoArray(A::AbstractArray{T,3} where T <: NumberOrMissing, f::AffineMap)

Construct a GeoArray from any Array and an AffineMap that specifies the coordinates. A default CRS will be generated.

source
GeoArrays.GeoArray — Method
GeoArray(A::AbstractArray{T,2|3} where T <: NumberOrMissing)

Construct a GeoArray from any Array. A default AffineMap and CRS will be generated.

Examples

julia> GeoArray(rand(10,10,1))
10x10x1 Array{Float64, 3} with AffineMap([1.0 0.0; 0.0 1.0], [0.0, 0.0]) and undefined CRS
source
GeoArrays.Vertex — Type
Vertex()

Strategy to use in functions like indices and coords, in which it will use the top left vertex of the raster cells to do coordinate conversion.

source
Base.coalesce — Method
coalesce(ga::GeoArray, v)

Replace all missing values in ga with v and set the GeoArray's eltype to the non-missing type.

Examples

julia> ga = GeoArray(collect([1 missing; 2 3]))
2x2x1 Base.ReshapedArray{Union{Missing, Int64}, 3, Matrix{Union{Missing, Int64}}, Tuple{}} with AffineMap([1.0 0.0; 0.0 1.0], [0.0, 0.0]) and undefined CRS

julia> ga2 = coalesce(ga, 0)
2x2x1 Array{Int64, 3} with AffineMap([1.0 0.0; 0.0 1.0], [0.0, 0.0]) and undefined CRS
julia> ga.A
2×2×1 Array{Int64, 3}:
[:, :, 1] =
 1  0
 2  3
source
Base.getindex — Method
getindex(ga::GeoArray, I::SVector{2,<:AbstractFloat})

Index a GeoArray with AbstractFloats to automatically get the value at that coordinate, using the function indices. A BoundsError is raised if the coordinate falls outside the bounds of the raster.

Examples

julia> ga[3.0,3.0]
1-element Vector{Float64}:
 0.5630767850028582
source
Base.getindex — Method
getindex(ga::GeoArray, i::AbstractRange, j::AbstractRange, k::Union{Colon,AbstractRange,Integer})

Index a GeoArray with AbstractRanges to get a cropped GeoArray with the correct AffineMap set.

Examples

julia> ga[2:3,2:3,1]
2x2x1 Array{Float64, 3} with AffineMap([1.0 0.0; 0.0 1.0], [1.0, 1.0]) and undefined CRS
source
GeoArrays.bbox! — Method

Set geotransform of GeoArray by specifying a bounding box. Note that this only can result in a non-rotated or skewed GeoArray.

source
GeoArrays.coords! — Method
coords!(ga, x::AbstractUnitRange, y::AbstractUnitRange)

Set AffineMap of GeoArray by specifying the center coordinates for each x, y dimension by a UnitRange.

source
GeoArrays.coords — Method
coords(ga::GeoArray, p::SVector{2,<:Integer}, strategy::AbstractStrategy=Center())
coords(ga::GeoArray, p::Tuple{<:Integer,<:Integer}, strategy::AbstractStrategy=Center())
coords(ga::GeoArray, p::CartesianIndex{2}, strategy::AbstractStrategy=Center())

Retrieve coordinates of the cell index by p. See indices for the inverse function.

source
GeoArrays.crop — Method
function crop(ga::GeoArray, cbox::NamedTuple{(:min_x, :min_y, :max_x, :max_y),Tuple{Float64,Float64,Float64,Float64}})

Crop input GeoArray by coordinates (box or another GeoArray). If the coordinates range is larger than the GeoArray, only the overlapping part is given in the result.

source
GeoArrays.enable_online_warp — Function
enable_online_warp(state::Bool=true)

Enable or disable network access for PROJ data, required for warp if no local PROJ data is available. This has the same effect as setting the environement variable PROJ_NETWORK to "ON" before starting Julia.

source
GeoArrays.fill! — Function
fill!(ga::GeoArray, solver, band=1)

Replace missing values in GeoArray ga using solver.

source
GeoArrays.indices — Method
indices(ga::GeoArray, p::SVector{2,<:Real}, strategy::AbstractStrategy, rounding::RoundingMode)

Retrieve logical indices of the cell represented by coordinates p. strategy can be used to define whether the coordinates represent the center (Center) or the top left corner (Vertex) of the cell. rounding can be used to define how the coordinates are rounded to the nearest integer index. See coords for the inverse function.

source
GeoArrays.isgeoequal — Method

Check whether two GeoArrayss a and b are geographically equal, although not necessarily in content.

source
GeoArrays.profile — Method
profile(ga::GeoArray, geom; band=1)

Draw a profile along a geometry and return the values in band as a vector. Geometry should be a GeoInterface compatible LineString.

source
GeoArrays.read — Method
read(fn::AbstractString; masked::Bool=true, band=nothing)

Read a GeoArray from fn by using GDAL. The nodata values are automatically set to Missing, unless masked is set to false. In that case, reading is lazy, but nodata values have to be converted manually later on. The band argument can be used to only read that band, and is passed to the getindex as the third dimension selector and can be any valid indexer.

It's possible to read from virtual filesystems, such as S3, or to provide specific driver pre and postfixes to read NetCDF, HDF4 and HDF5.

read("/vsicurl/https://github.com/OSGeo/gdal/blob/master/autotest/alg/data/2by2.tif?raw=true")
read("HDF5:"/path/to/file.hdf5":subdataset")
source
GeoArrays.straighten — Method
straighten(ga::GeoArray)

Straighten a rotated GeoArray, i.e. let its AffineMap only scale the coordinates.

source
GeoArrays.warp — Function
warp(ga::GeoArray, options::Dict{String,Any}; dest="/vsimem/##225")
warp(ga::GeoArray, like::GeoArray, options::Dict{String,Any}; dest="/vsimem/##226")

warp uses ArchGDAL.gdalwarp to warp an GeoArray. The options are passed to GDAL's gdalwarp command. See the gdalwarp docs for a complete list of options. Another GeoArray like can be passed as the second argument to warp to use the like's crs, extent and size as the ga crs and resolution. The keyword dest is used to control where the temporary raster is stored. By default it is stored in memory, but can be set to a file path to directly save the warped GeoArray to disk.

Warning

If no local PROJ data is available, (vertically) warping will silently fail. Use enable_online_warp() to enable (slow) network access to PROJ data. For faster operations, use a utlity like projsync to download the data locally.

Examples

julia> ga = GeoArray(rand(100,100))
julia> epsg!(ga, 4326)
julia> ga2 = GeoArrays.warp(ga, Dict("t_srs" => "EPSG:4326+3855"))
source
GeoArrays.write — Method
write(fn::AbstractString, ga::GeoArray; nodata::Union{Nothing,Number}=nothing, shortname::AbstractString=find_shortname(fn), options::Dict{String,String}=Dict{String,String}(), bandnames=nothing)

Write a GeoArray to fn. nodata is used to set the nodata value. Any Missing values in the GeoArray are converted to this value, otherwise the typemax of the element type of the array is used. The shortname determines the GDAL driver, like "GTiff", when unset the filename extension is used to derive this driver. The options argument may be used to pass driver options, such as setting the compression by Dict("compression"=>"deflate"). The bandnames keyword argument can be set to a vector or tuple of strings to set the band descriptions. It should have the same length as the number of bands.

source
